Key features and functions:

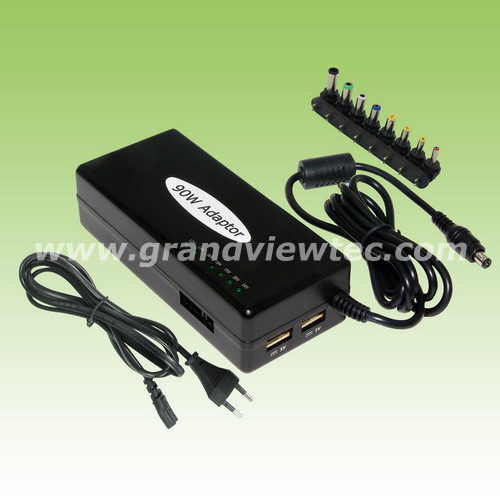

*Universal AC-to-DC regulated adapter for Laptop/Notebook computers and other DC products.
*Power up to 90 Watt, output current up to 4.5Amps
*Switching adjustable output voltage: DC 12V/15/16/18/19/20/24V.
*Dual USB port, output DC5V/1A each to charge other suitable electric product.
*Latest DC type charging plug, better connectivity and easy to use.
*Various charging plugs for selection, suitable for most popular brand Laptop.
*LED light display output voltage.
*AC connector available: Europe, USA, UK, AUS etc.
*Stabilized output, low ripple, cable with ferric core for interference reduction.
*High efficiency & low energy consumption.
*Overload and short-circuit protection.

Technique parameters:

Rated input voltage (50-60Hz) AC120V or AC230V
Input voltage range (47-63Hz) AC100V-240V
Rated input current 1.8AMP
Input Power 120VA
Output power 90W max
Efficiency >85%(TYP)
Output voltage (No load) 12V/15/16/18/19/20/24V (0 ～ +0.8V)
Output of USB (No load) 5V (0 ～ +0.8V)
Output voltage (rating load) 12V/15/16/18/19/20/24V (+/- 0.5V)
Output current 12V/15V/16V/18V/19V/20V--4.5Amax
24V--3.75 A max（no USB output）
Output current of USB 2A max (each 1A)
Overload protection Yes
Short Circuit Protection Yes
Line Regulation +/-5%
Load Regulation +/-5%
Operating Temperature 0 to 40 °C
Operating Humidity 20% to 80%
Storage Temperature –10 to 70 °C
Storage Humidity 10% to 90%


Certificate:

CE, RoHS
